Finish: Self, Black, Hot Dip Galv., Electro Galvanized

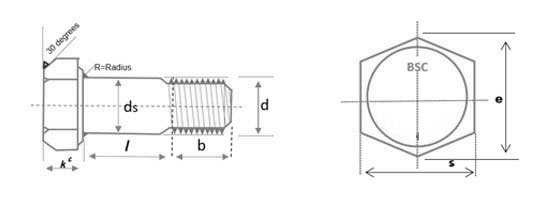

| Thread Size d | M 16 | M 20 | M 22 | M 24 | M 27 | M 30 | M 36 | |
|---|---|---|---|---|---|---|---|---|
| P pinch | 2 | 2.5 | 2.5 | 3 | 3 | 3.5 | 4 | |
| b | Bolts ≤ 100 | 31 | 36 | 38 | 41 | 44 | 49 | 56 |
| Bolts > 100 | 38 | 43 | 45 | 48 | 51 | 56 | 63 | |
| ds | Min. | 15.30 | 19.16 | 21.16 | 23.16 | 26.16 | 29.16 | 35.00 |
| Max. | 16.70 | 20.84 | 22.84 | 24.84 | 27.84 | 30.84 | 37.00 | |
| s | Min. | 26.16 | 33.00 | 35.00 | 40.00 | 45.00 | 49.00 | 58.00 |
| Max. | 27.00 | 34.00 | 36.00 | 41.00 | 46.00 | 50.00 | 60.00 | |
| e | Min. | 29.56 | 37.29 | 39.55 | 45.20 | 50.85 | 55.37 | 66.44 |
| Max. | 31.18 | 39.26 | 41.57 | 47.34 | 53.12 | 57.74 | 69.28 | |
| dw1 | Min. | 24.90 | 31.40 | 33.30 | 38.00 | 042.8 | 46.50 | 55.90 |
| k1 | Min. | 6.50 | 8.10 | 9.20 | 9.90 | 11.30 | 12.40 | 15.00 |
| k | Min. | 9.25 | 11.60 | 13.10 | 14.10 | 16.10 | 17.65 | 21.45 |
| Max. | 10.75 | 13.40 | 14.90 | 15.90 | 17.90 | 19.75 | 23.55 | |
| c | Min. | 0.40 | 0.40 | 0.40 | 0.40 | 0.40 | 0.40 | 0.40 |
| Max. | 0.80 | 0.80 | 0.80 | 0.80 | 0.80 | 0.80 | 0.80 | |
| da | Max. | 18.20 | 22.40 | 24.40 | 26.40 | 30.40 | 33.40 | 39.40 |
| t | Min. | 0.60 | 0.80 | 0.80 | 1.00 | 1.20 | 1.20 | 1.50 |
The maximum value of dw shall not exceed the actual width across flats. All dimensions ate in millimeters.
All data for information purpose only. For more details on product standards or dimensions, please feel free to contact us at centuryboltcentre@gmail.com
