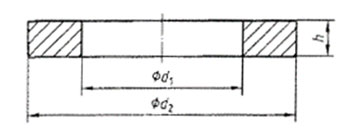

| Hole diameter, d1 | Outside diameter, d2 | Thickness, h | Approx. mass in kg, per 1000 units | |||
|---|---|---|---|---|---|---|
| Normal size(thread size) | Minimum | Maximum | Minimum | Maximum | ||
| M10 | 11 | 11,70 | 20 | 18,7 | 8±1,2 | 13,8 |
| M12 | 13,5 | 14,20 | 24 | 22,7 | 19,4 | |
| M16 | 17,5 | 18,20 | 30 | 28,7 | 29,3 | |
| M20 | 22 | 22,84 | 37 | 35,4 | 43,7 | |
| M24 | 26 | 26,84 | 44 | 42,4 | 62,1 | |
| M27 | 30 | 30,84 | 50 | 48,4 | 78,9 | |
| M30 | 33 | 34 | 56 | 54,1 | 101 | |
All data for information purpose only. For more details on product standards or dimensions, please feel free to contact us at centuryboltcentre@gmail.com
