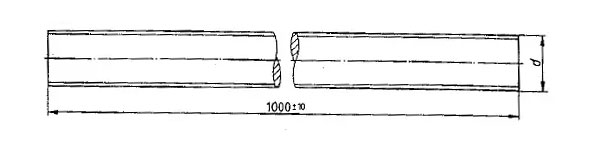

| Thread size d |
M 2 | M 2.5 | M 3 | (M 3.5) | M 4 | M 5 | M 6 |
|---|---|---|---|---|---|---|---|
| Mass (7.85 kg/dm3), in kg per 1000 units, approximately |
18.7 | 30 | 44 | 60 | 78 | 124 | 177 |
| Thread size d |
M 8 | M 10 | M 12 | (M 14) | M 16 | (M 18) |
|---|---|---|---|---|---|---|
| M 8 x 1 | M 10 x 1.25 | M 12 x 1.25 | (M 14 x 1.5) | M 16 x 1.5 | M 18 x 1.5 | |
| - | M 10 x 1 | M 12 x 1.5 | - | - | - | |
| Mass (7.85 kg/dm3), in kg per 1000 units, approximately |
319 | 500 | 725 | 970 | 1330 | 1650 |
| Thread size d |
M 20 | (M 22) | M 24 | (M 27) | M 30 | (M 33) |
|---|---|---|---|---|---|---|
| M 20 x 1.5 | (M 22 x 1.5) | M 24 x 2 | M 27 x 2 | M 30 x 2 | (M 33 x 2) | |
| Mass (7.85 kg/dm3), in kg per 1000 units, approximately |
2080 | 2540 | 3000 | 3850 | 4750 | 5900 |
| Thread size d |
M 36 | M 39 | M 42 | (M 45) | M 48 | (M 52) |
|---|---|---|---|---|---|---|
| M 36 x 3 | (M 39 x 3) | M 42 x 3 | (M 45 x 3) | M 48 x 3 | (M 52 x 3) | |
| Mass (7.85 kg/dm3), in kg per 1000 units, approximately |
6900 | 8200 | 9400 | 11000 | 12400 | 14700 |
Bracketed sizes should be avoided if possible.
The values of mass specified shall apply to threaded rods with coarse pitch thread.
As a general rule, threaded rods are kept on stock only with coarse pitch thread.
