IS 5624

FOUNDATION BOLTS

IS 5624 : 1993

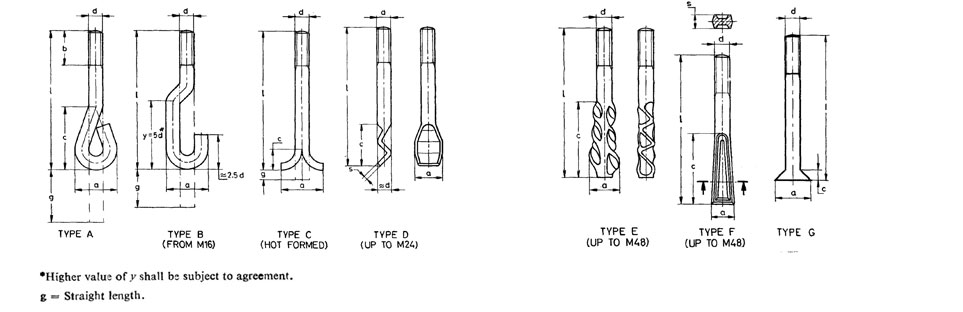

Dimensions (mm)

Thread Size d M 8 M 10 M 12 M 16 M 20 M 24 M 30 M 36 M 42 M 48 M 56 M 64 M 72 x 6
A±3 A, B, C 24 30 36 48 60 75 95 115 135 155 180 200 240
D 16 20 24 32 40 48 - - - - - - -
E 16 20 24 32 40 48 60 72 85 98 - - -
F 14 16 20 25 30 35 45 55 65 75 - - -
G 20 25 30 40 50 60 75 90 105 120 140 160 180
C±3 A 45 55 65 85 105 125 155 190 220 250 290 335 370
C 12 15 18 24 30 36 45 54 63 72 84 96 110
D 24 30 36 48 60 72 - - - - - - -
E 45 55 70 90 100 135 150 180 260 260 - - -
F 50 50 55 85 95 120 130 190 200 220 - - -
G 5 6 7 10 12 14 18 22 25 29 34 38 43
g≈ A 30 38 45 60 75 90 115 135 155 180 210 235 260
B - - - 45 55 70 90 110 125 140 160 185 215
C 5 7 8 11 14 18 24 30 34 40 45 50 60
S±1.5 D 3 3.5 4 5 6 8 - - - - - - -
F 6 8 10 14 18 22 26 30 36 42 - - -

All data for information purpose only. For more details on product standards or dimensions, please feel free to contact us at centuryboltcentre@gmail.com
